Second Year

A selection of my work from the second year of my Architecture degree.

This year I studied civic buildings and the significance public spaces have on the community around it.

Civic Precedent Study: Casa del Fascio

Casa del Fascio Facade
Photograph of Casa del Fascio Facade

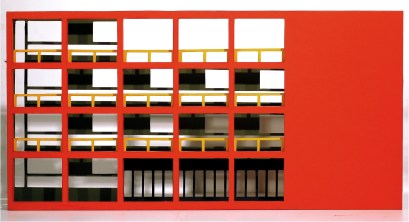

Reinterpreted Facade Model (1:50)
Reinterpreted Facade Model (1:50)
Reinterpreted Facade Model (1:50)
To show my reinterpretation, the facade model was built up of layers

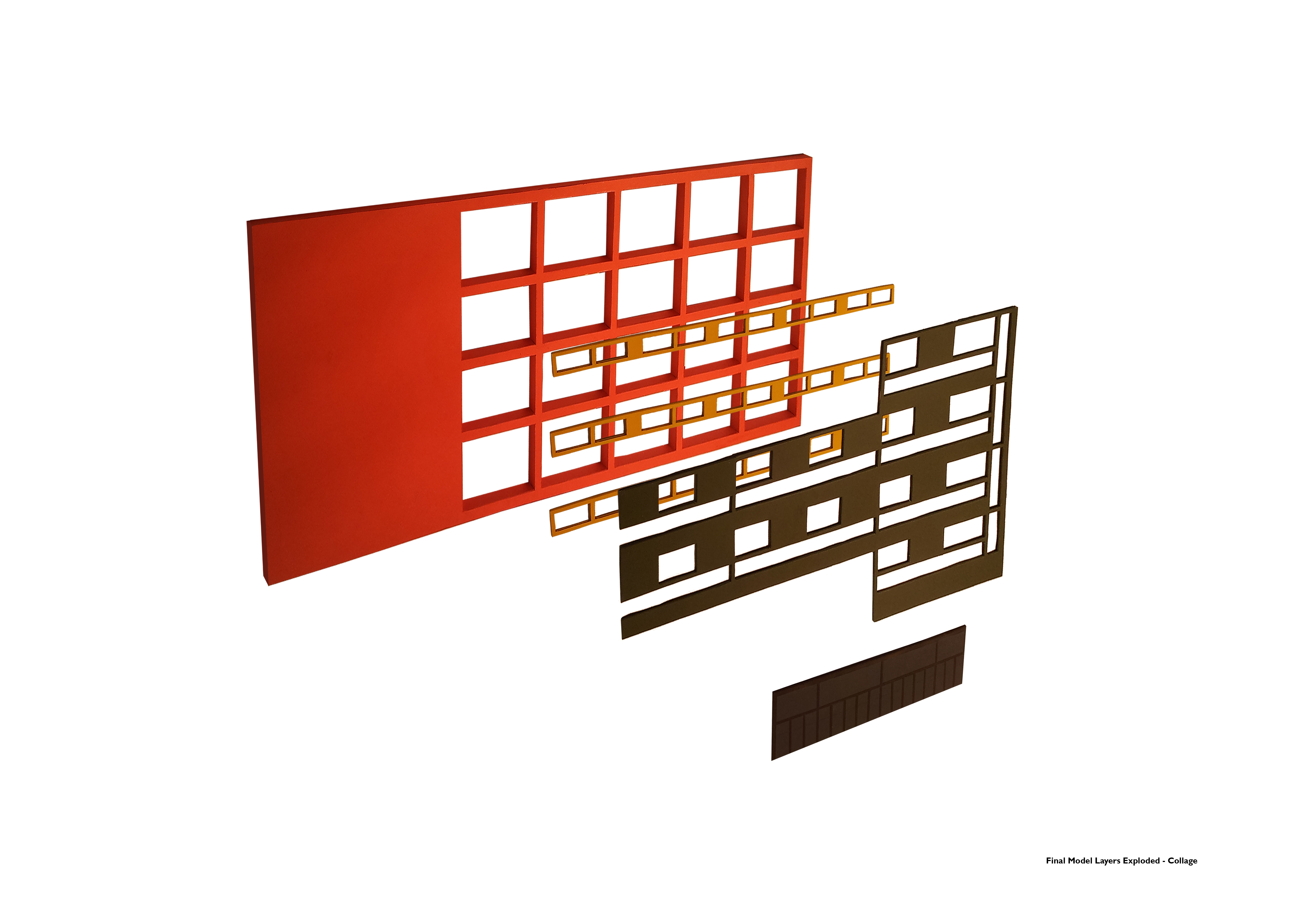

Exploded Facade Study
Exploded Facade Study
Internal Section
Internal Section

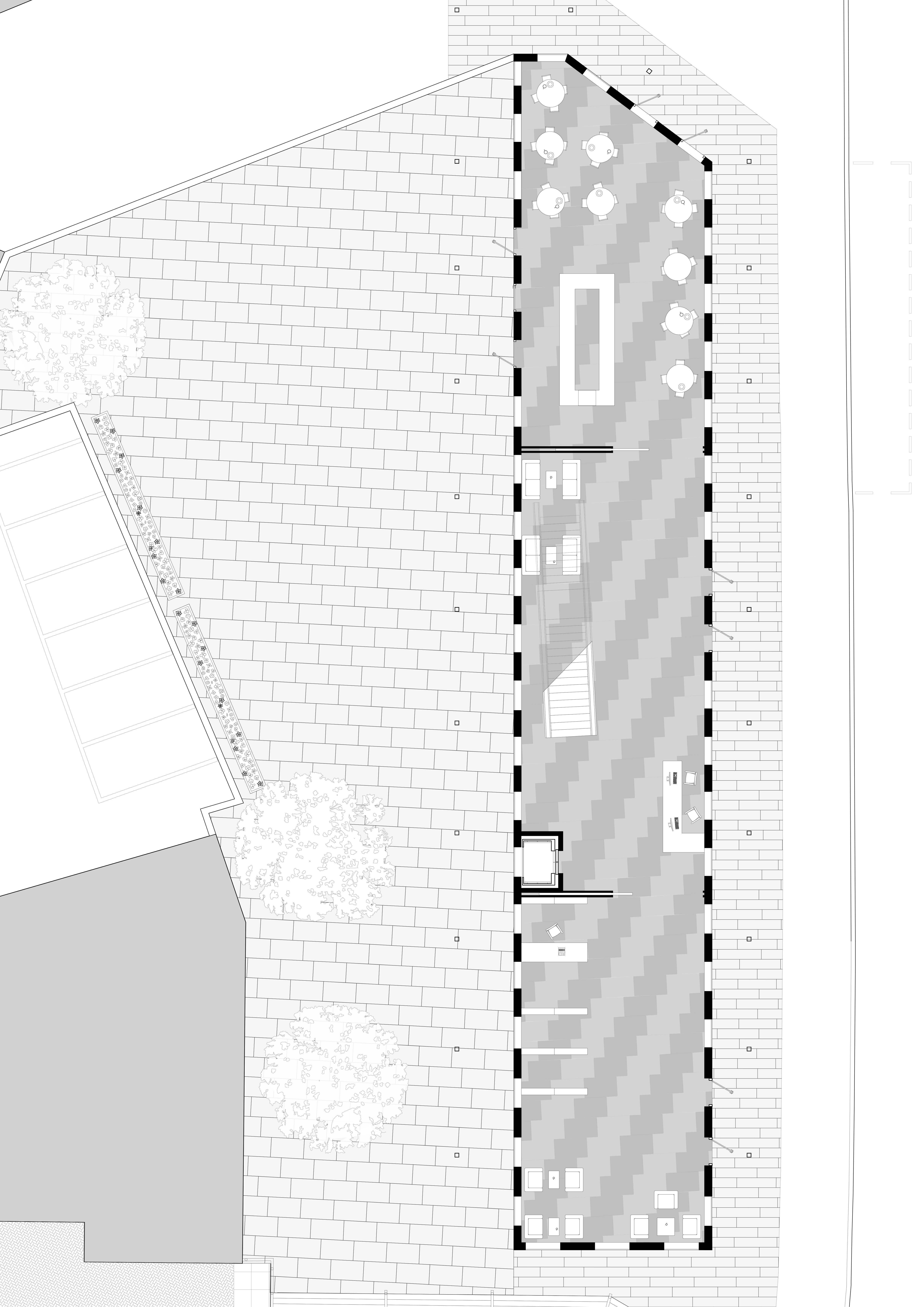

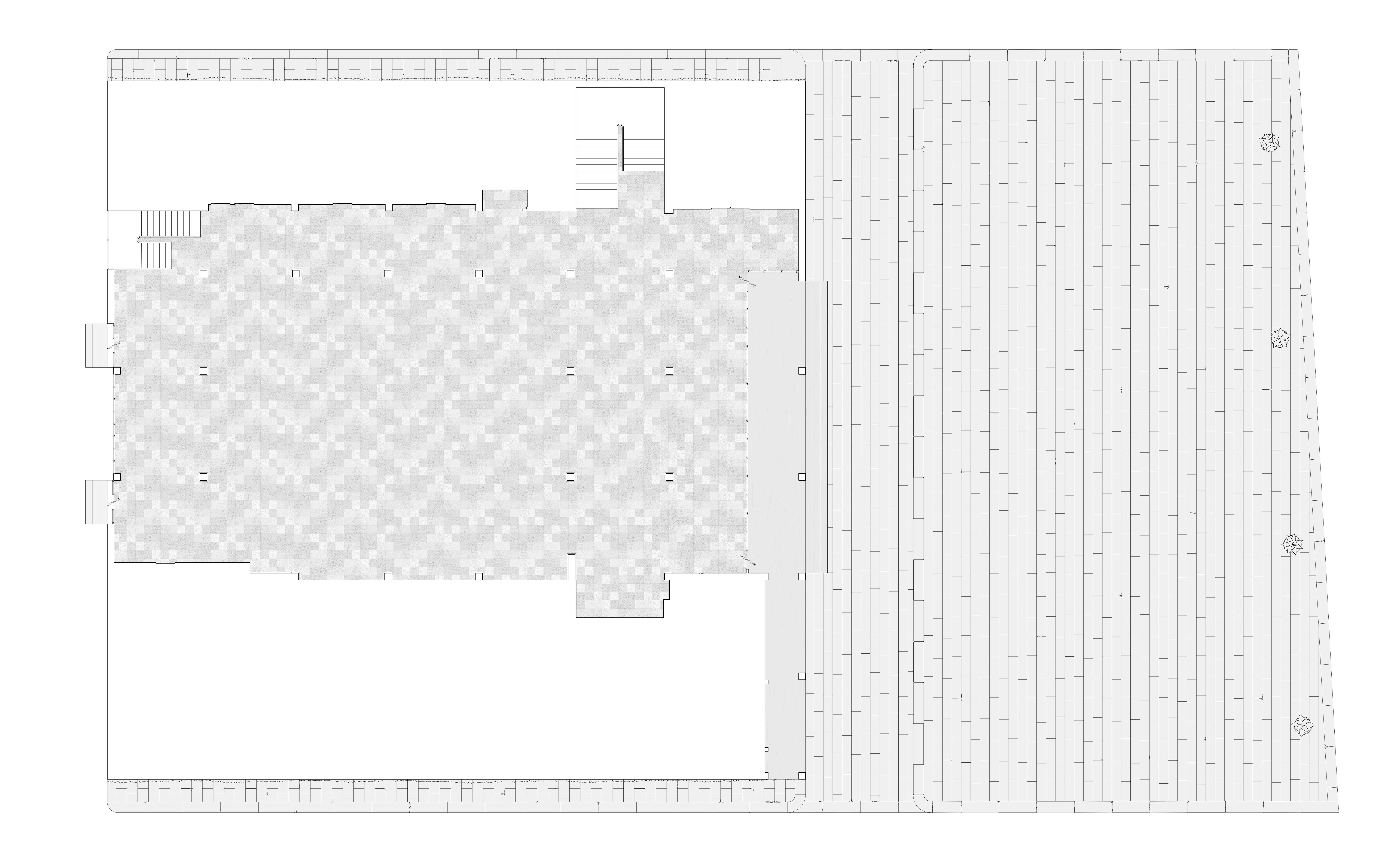

Ground Floor Plan
Ground Floor Plan at 1:100 – showing public space



Civic Building Design for Amersham

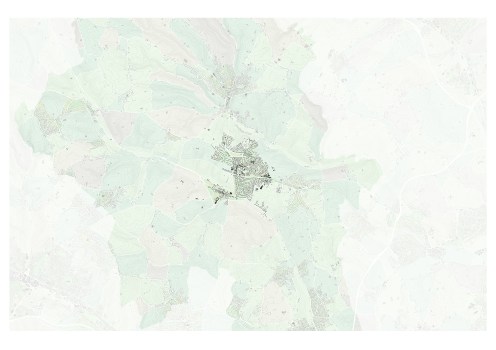

Topographical Plan of Chiltern District
Topographical Plan of Chiltern District

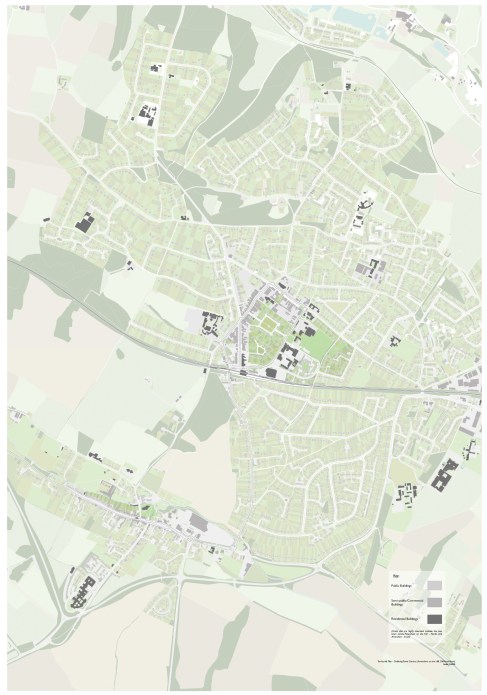

Territorial Plan of Amersham
Territorial Plan of Amersham

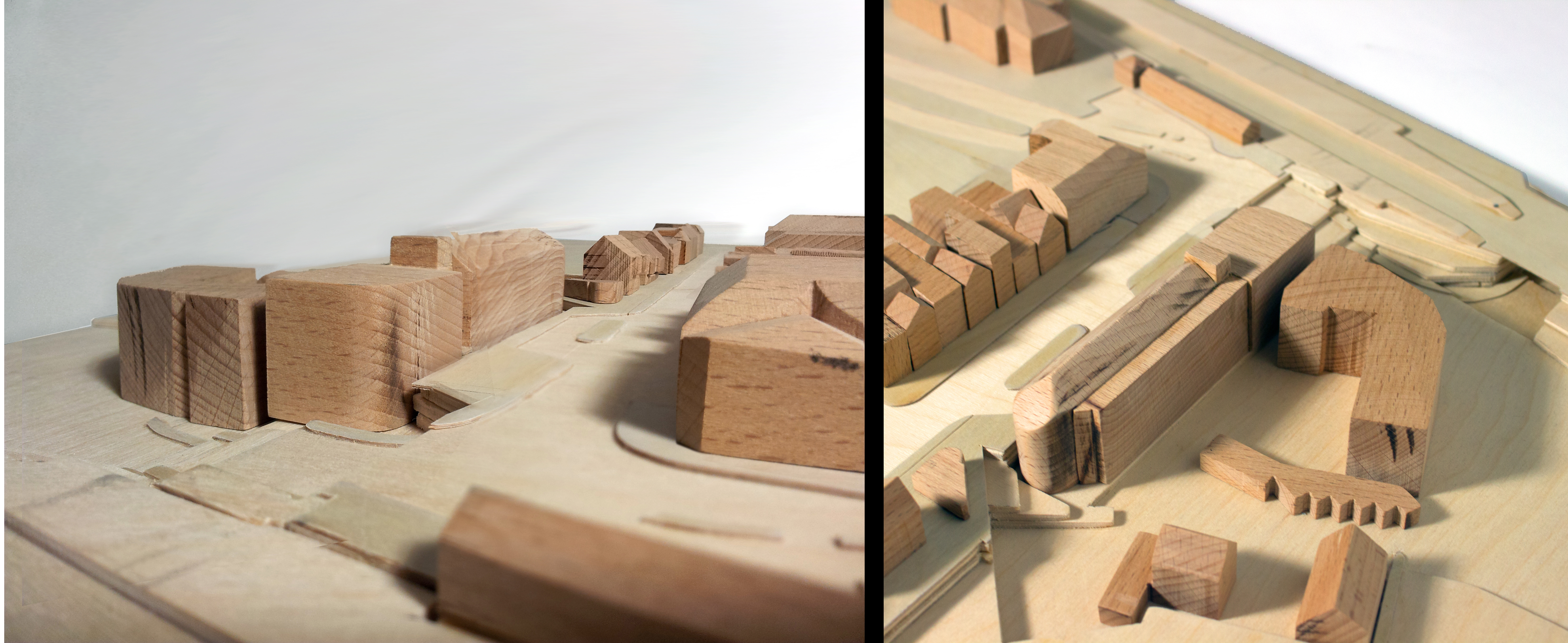

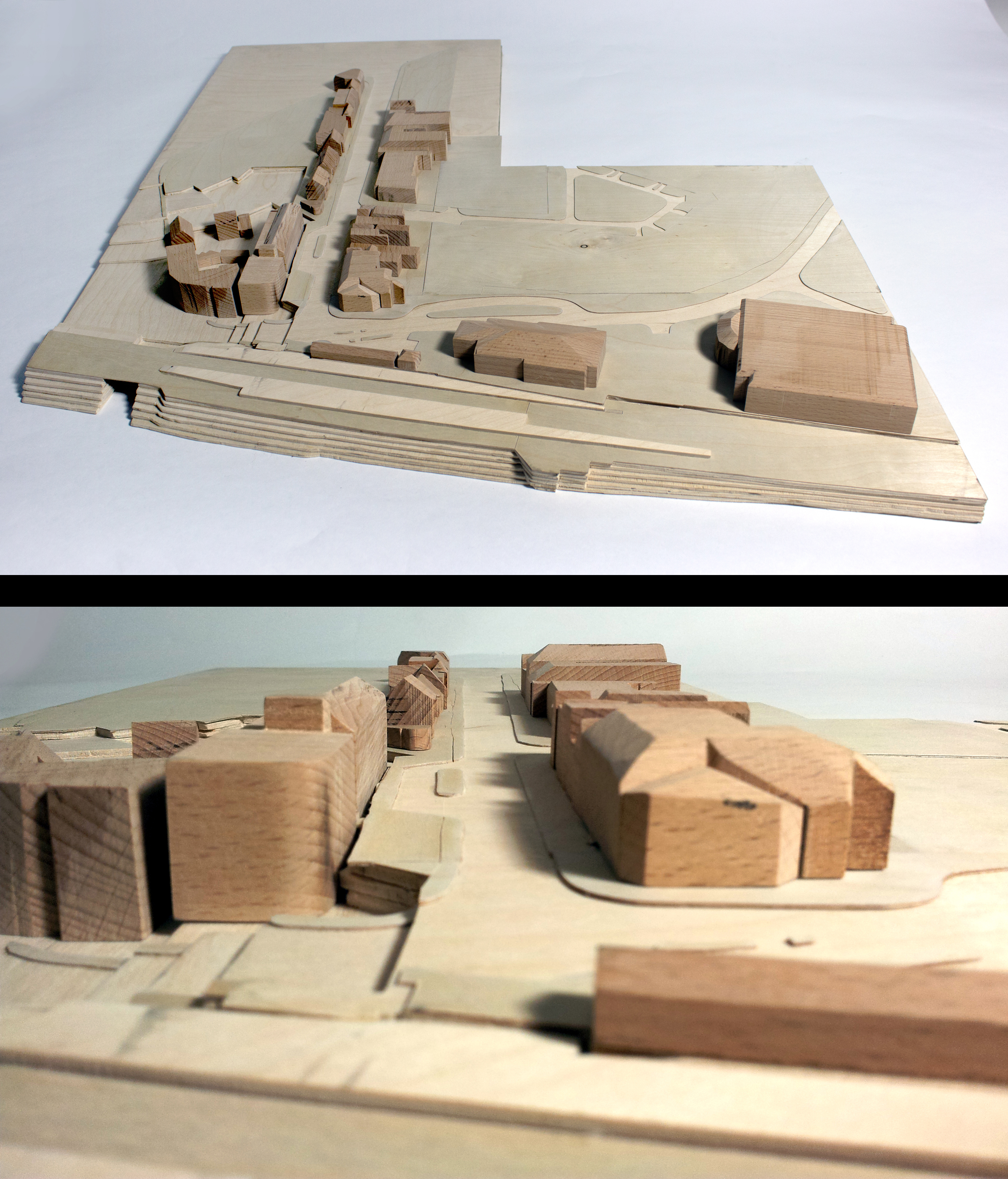

1:500 Site Model
1:500 Site Model
Chosen Site Photos on Model
Chosen Site Photos on Model
Existing Site Photo
Existing Site Photo
Site with Proposed Town Hall for Amersham
Site with Proposed Town Hall for Amersham
Internal View - Council Chamber
Internal View – Council Chamber

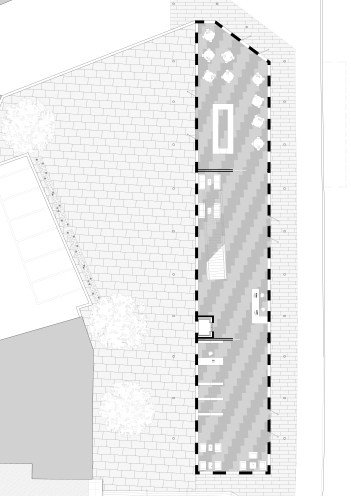

Town Hall Interior Plan - Ground Floor
Town Hall Interior Plan – Ground Floor
Town Hall Interior Plan - First Floor
Town Hall Interior Plan – First Floor

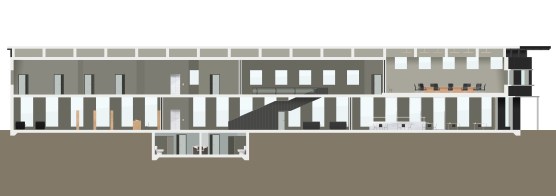

Internal Section
Internal Section though Building Proposal

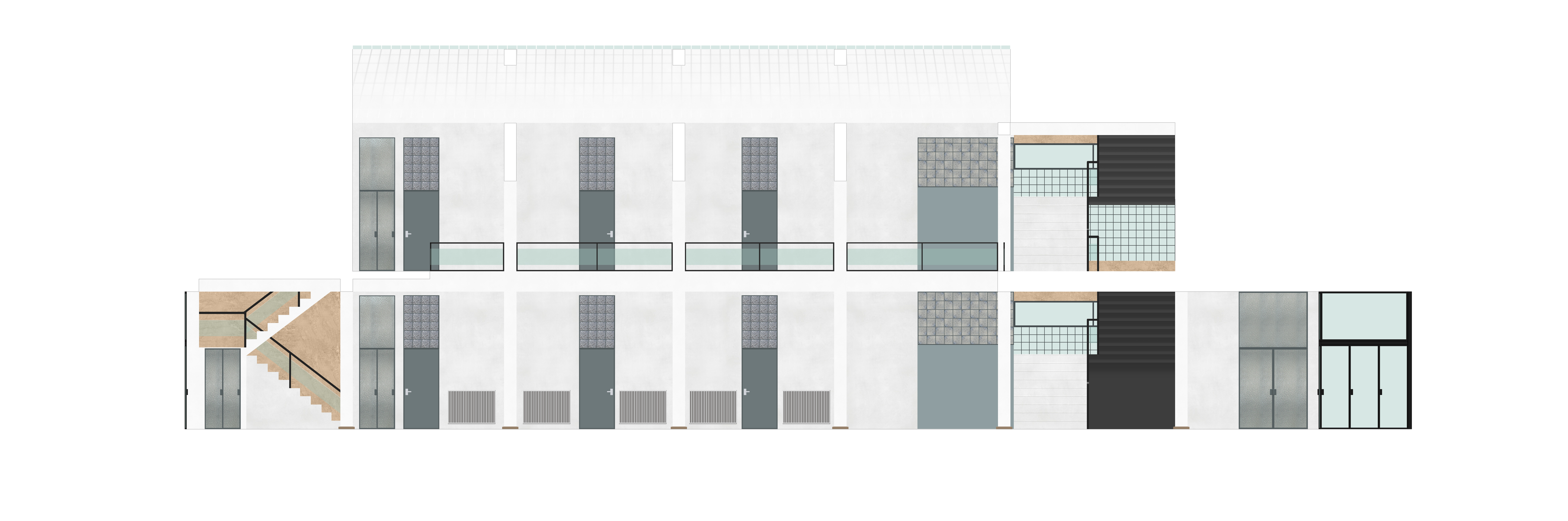

Facade Elevation
Facade Elevation

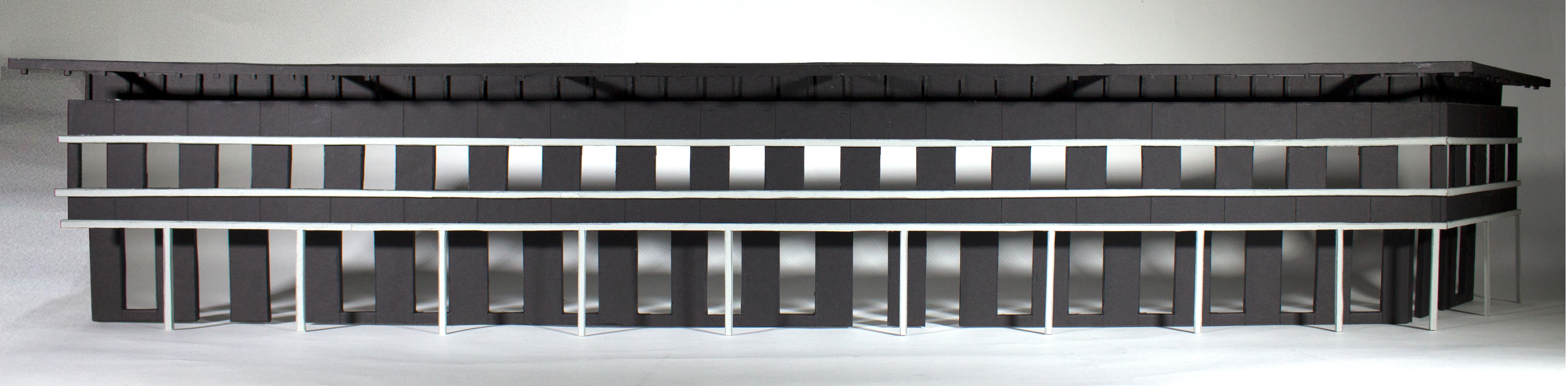

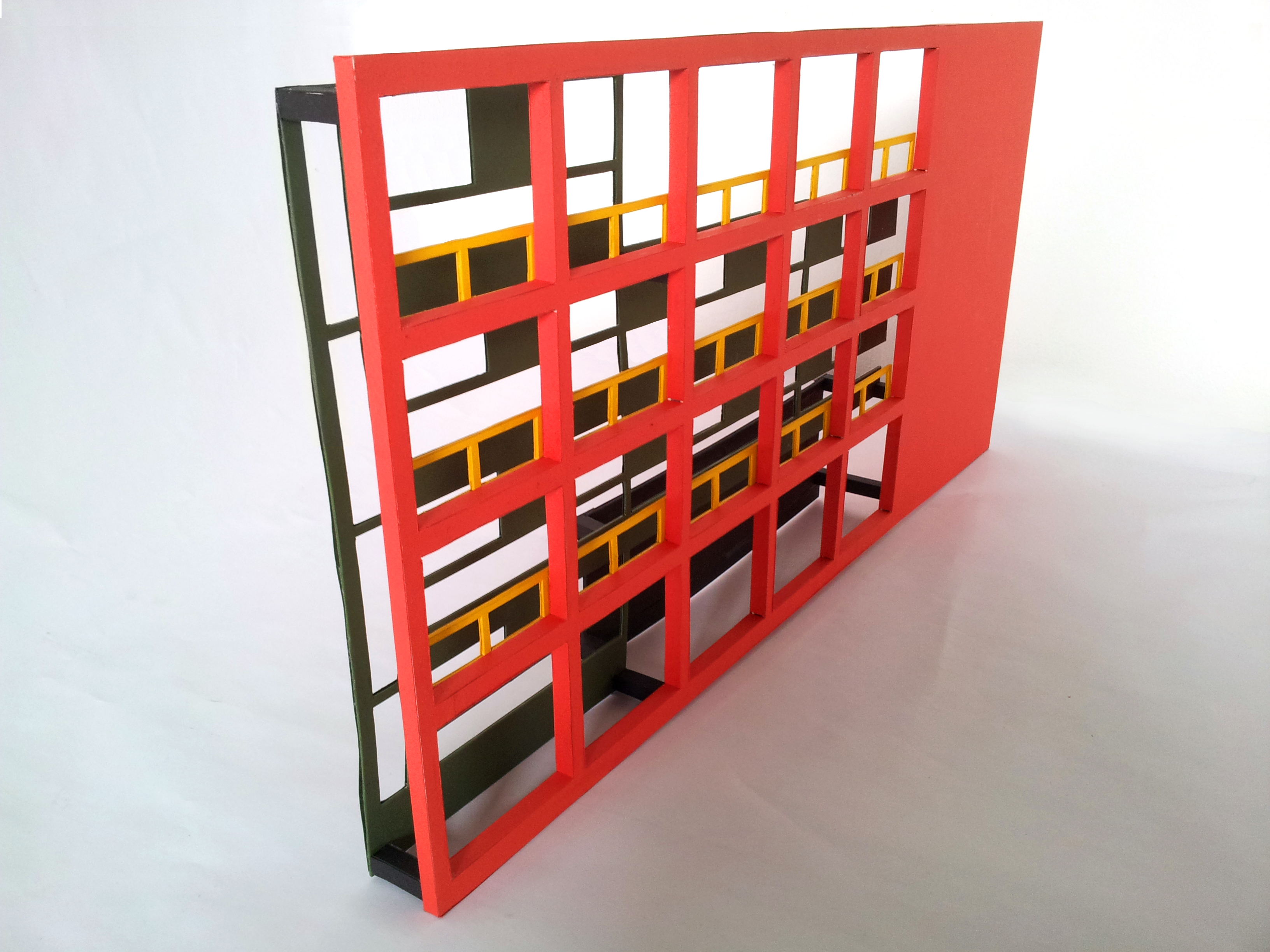

1:50 Facade Model
1:50 Facade Model

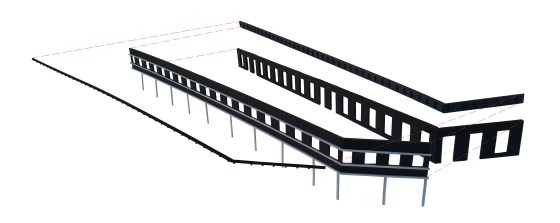

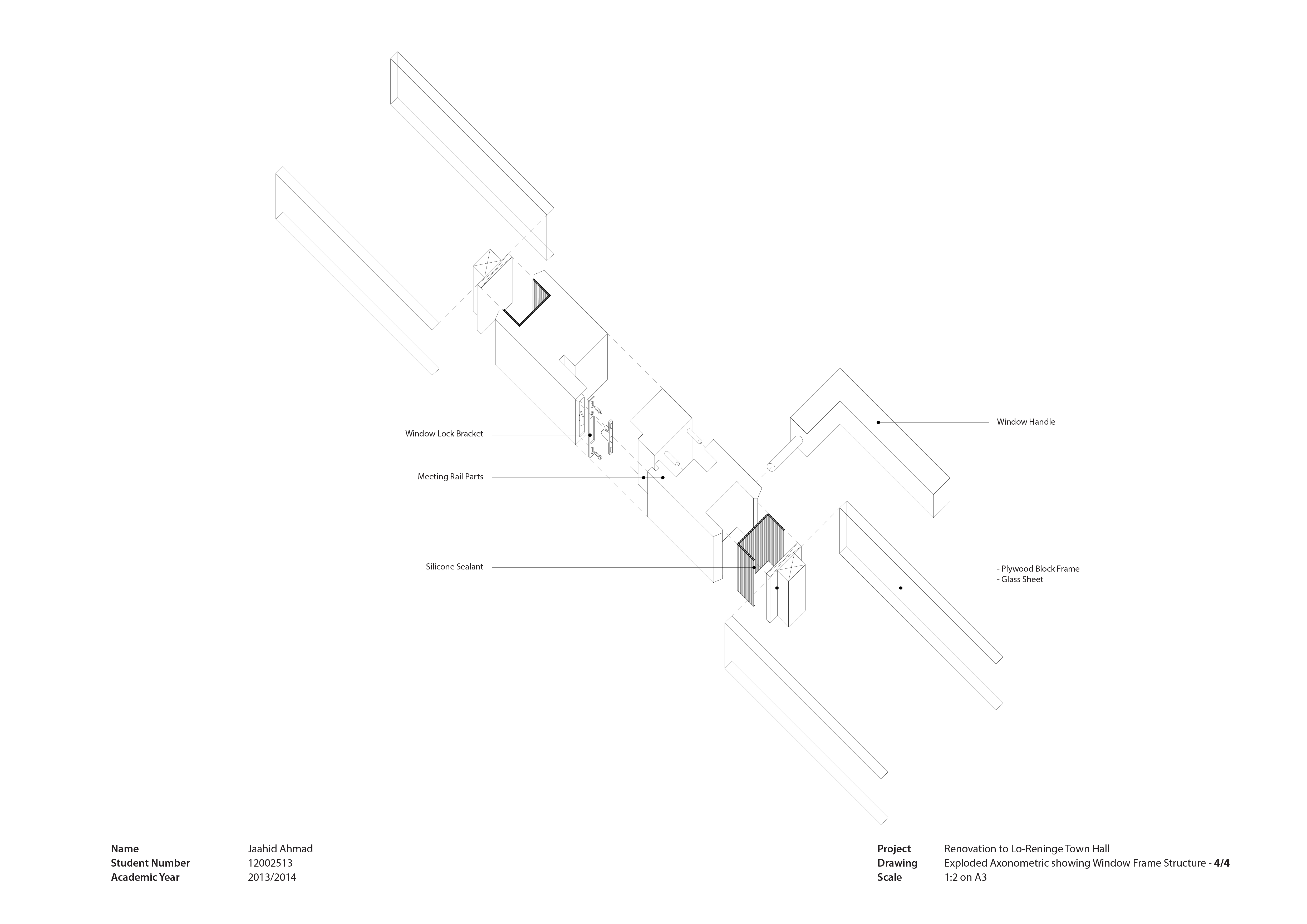

Layers of Facade Model Exploded
Layers of Facade Model Exploded



Civic Technical Study: Lo-Reninge Town Hall, Belgium

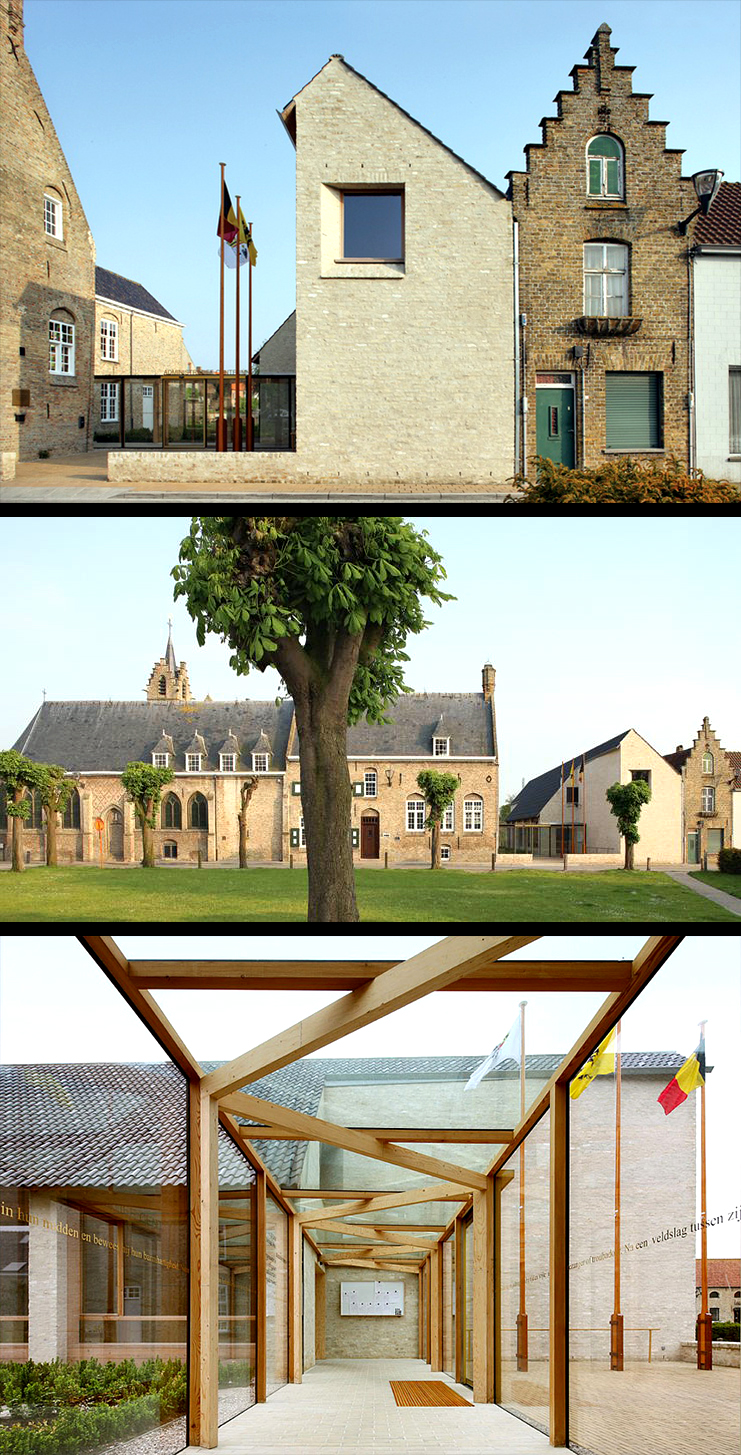

Lo-Reninge Town Hall Photos
Lo-Reninge Town Hall Photos
Internal Perspective Section at 1:100
Internal Perspective Section at 1:100
1:20 Bay Section
1:20 Bay Section

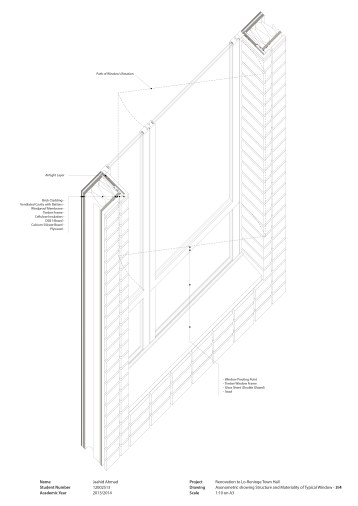

1:10 Window Axonometric
1:10 Window Axonometric
1:5 Window Detail
1:5 Window Detail
